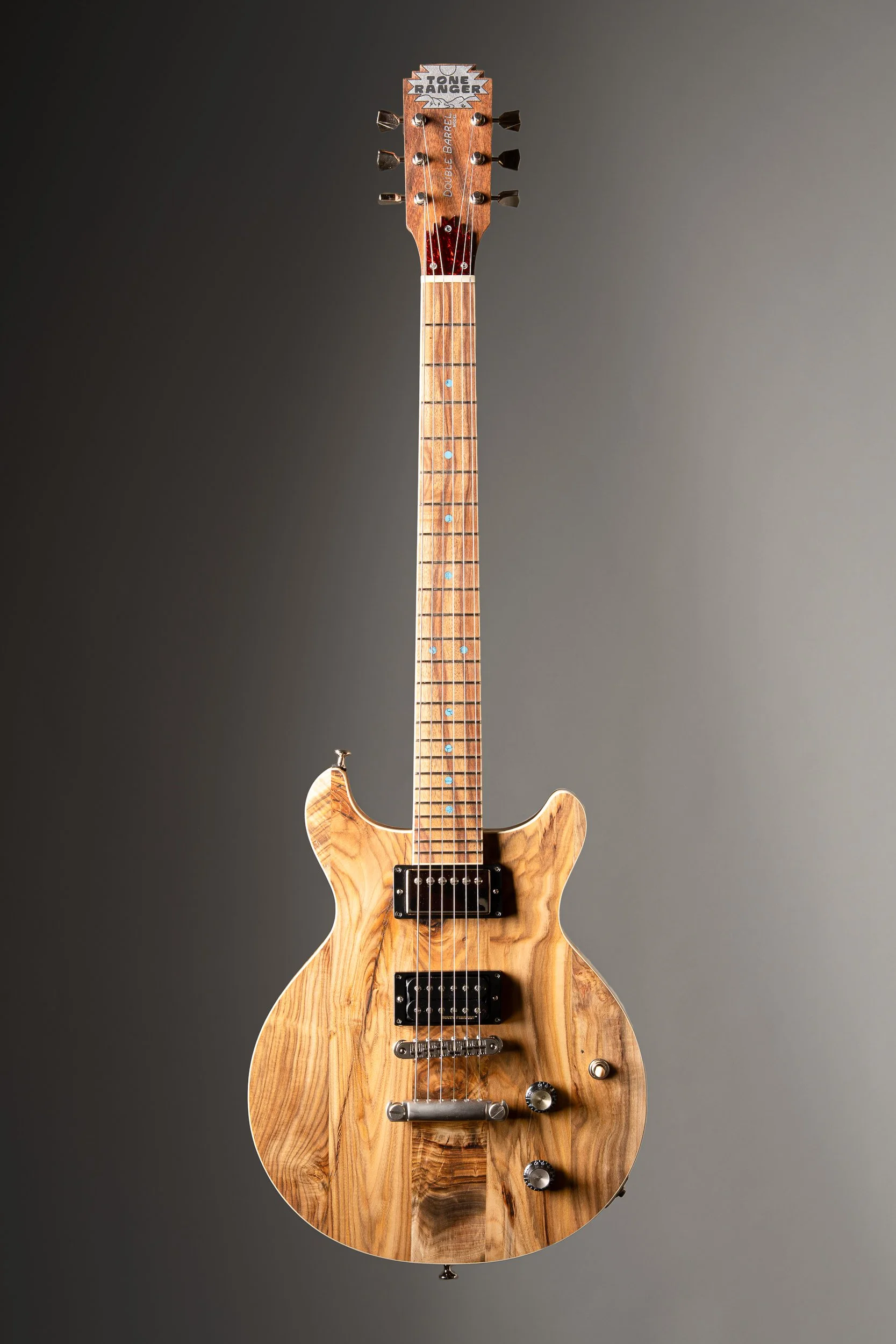

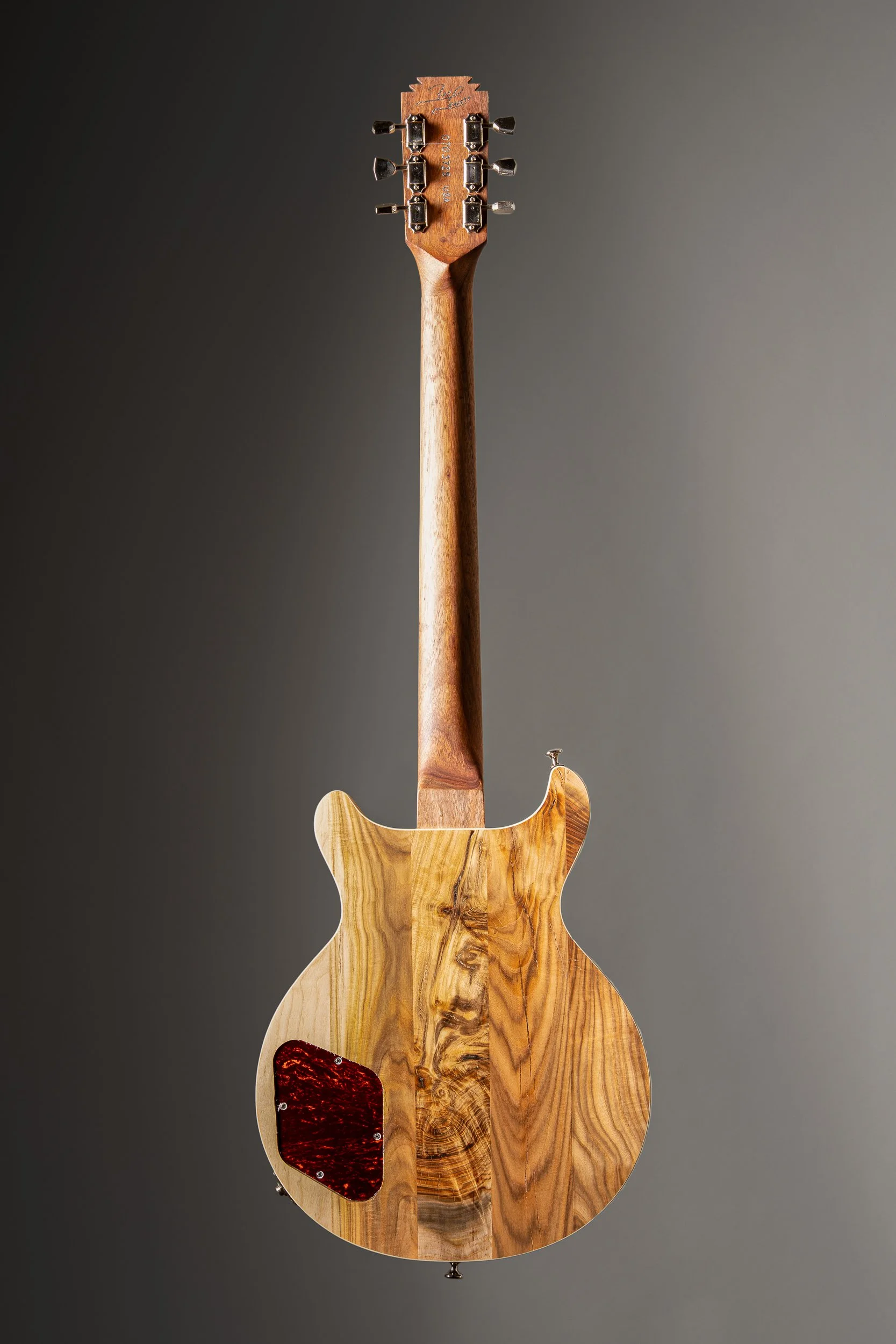

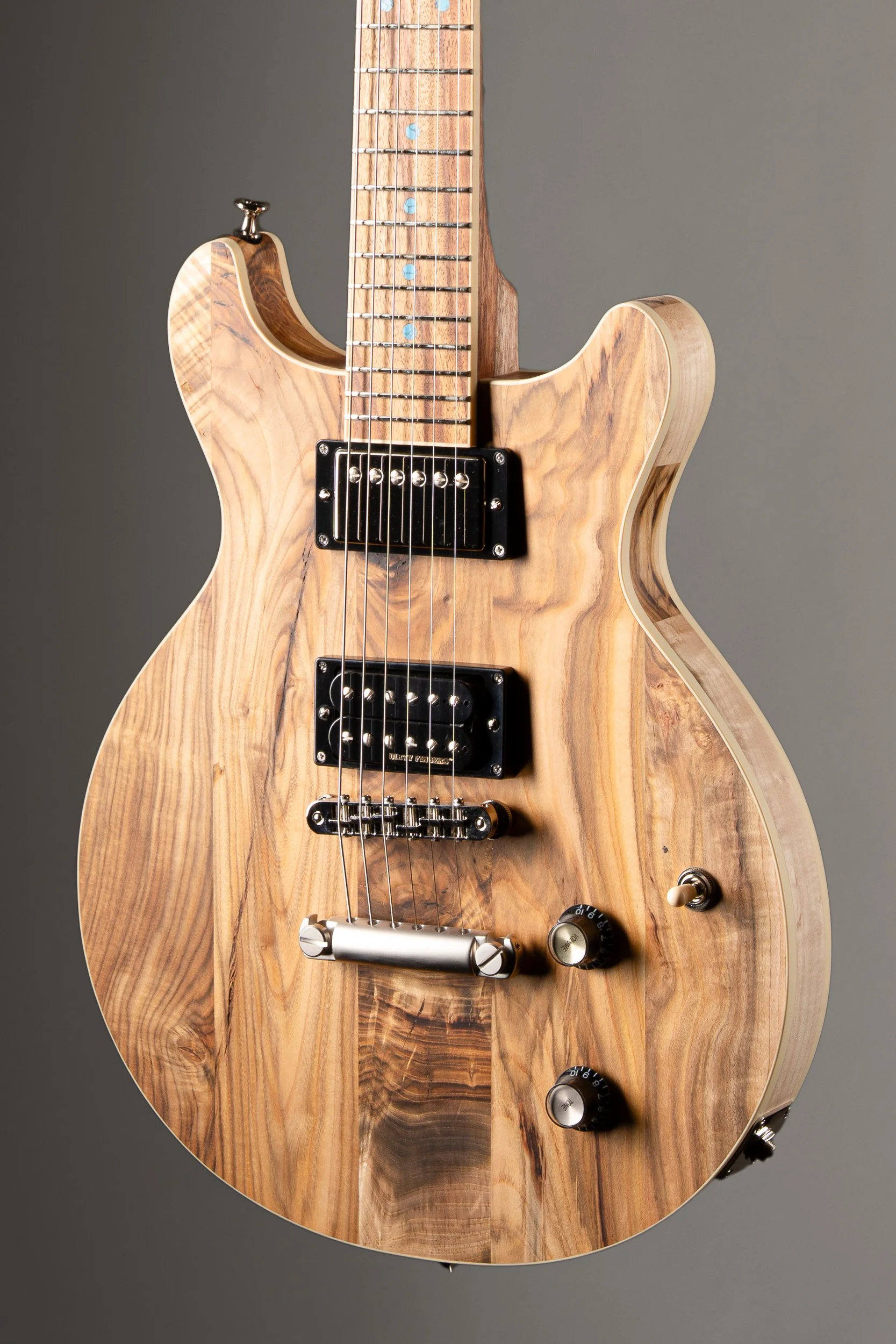

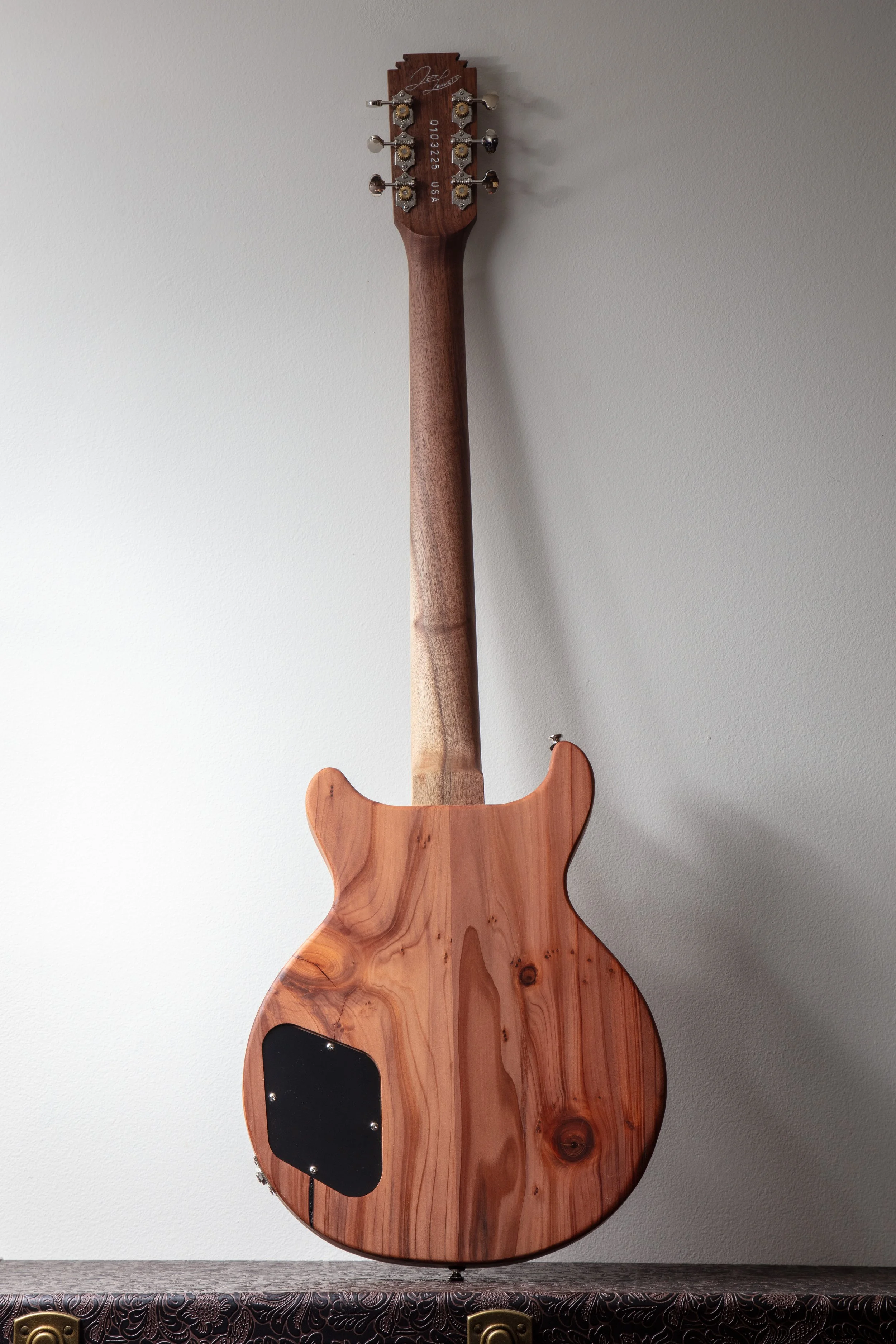

Double Barrel

Your double-cut cut above

The crowd will reach for the sky when the Tone Ranger Guitars “Double Barrel” model hits the stage. Equipped with a Bigsby B5 to pour on that glassy shimmer, and 24 frets to give you a little extra when you need it, this double-cut gives other LP-Jrs an upper-cut. With its exquisite playability and striking looks, you’ll take the audience to school with my take on the classic student model. From punk to funk, the Double Barrel will ride shotgun with you anywhere your musical trail takes you.

Double Barrel

Serial no. 0103125

  • Body wood - Urban California redwood w/ figured urban black walnut top
    Neck wood - Urban black walnut
    Fretboard wood - Urban Indian rosewood
    Headcap wood - N/A
    Fret markers - Turquoise
    Side dots - Copper
    Frets - Jescar 55090 medium/highest nickel silver
    Nut material - Bone

  • Weight - 7.2 pounds
    Number of frets - 24
    Fretboard radius - 12”
    Neck profile - D
    Scale length - 24.75”
    Neck joint - Set neck
    Finish - Hand-rubbed Walrus Oil
    Headstock logo - Silkscreened

  • Neck pickup - TV Jones Super’Tron Bridge pickup- TV Jones Classic Plus Filter’Tron
    Volume pot - CTS 500k audio taper w/ treble bleed
    Tone pots - CTS 500k audio taper w/ 47nf Illinois Capacitor film cap
    Switch - Switchcraft 3-way toggle
    Output jack - Switchcraft jack

  • Finish - Gold
    Tuners - Grover Sta-tite 18:1
    Bridge - Tone Pros T3BP tune-o-matic
    Tailpiece - Gotoh stopbar
    Knobs - Bigsby B5
    Pickguard - Gold top hats

Double Barrel

Serial no. 0103225

  • Body wood - Urban California redwood w/ figured urban black walnut top
    Neck wood - Urban black walnut
    Fretboard wood - Urban Indian rosewood
    Headcap wood - N/A
    Fret markers - Turquoise
    Side dots - Copper
    Frets - Jescar 55090 medium/highest nickel silver
    Nut material - Bone

  • Weight - 7.4 pounds
    Number of frets - 24
    Fretboard radius - 12”
    Neck profile - Thin D
    Scale length - 24.75”
    Neck joint - Set neck
    Finish - Hand-rubbed Walrus Oil
    Headstock logo - Silkscreened

  • Pickups - Lollar goldfoil set
    Volume pot - CTS 500k audio taper w/ treble bleed
    Tone pots - CTS 500k audio taper w/ 47nf Illinois Capacitor film cap
    Switch - Centralab 3-way toggle
    Output jack - Puretone multi-contact jack

  • Finish - Nickel
    Tuners - Grover Sta-tite 18:1
    Bridge - Tone Pros T3BP tune-o-matic
    Tailpiece - Bigsby B5
    Knobs - Black top hats
    Pickguard - N/A

Double Barrel

Serial no. 1100123

  • Body wood - Reclaimed old-growth California redwood
    Neck wood - African mahogany
    Fretboard wood - Bocote
    Headcap wood - Urban California redwood
    Fret markers - Mother of pearl
    Side dots - Copper
    Frets - Jescar 55090 medium/highest nickel silver
    Nut material - Bone

  • Weight - 6.8 pounds
    Number of frets - 22
    Fretboard radius - 12”
    Neck profile - D
    Scale length - 24.75”
    Neck joint - Set neck
    Finish - Hand-rubbed Sam Maloof oil/Transtint black
    Headstock logo - Silkscreened

  • Pickups - Lollar Imperial “high-wind” set
    Volume pots - 2x Bourns 500k audio taper push/pull w/ treble bleed and coil tap
    Tone pots - 1x CTS 500k audio taper w/ 22nf Orange Drop / 1x rotary switch w/ 1.8nf and 3.9nf Orange Drops
    Switch - Switchcraft 3-way toggle
    Output jack - Puretone multi-contact jack

  • Finish - Nickel
    Tuners - Grover locking Rotomatics
    Bridge - Tone Pros NVR-2 tune-o-matic
    Tailpiece - Gotoh stopbar
    Knobs - Speedknobs
    Pickguard - Black single-ply

Double Barrel

Serial no. 0401124

  • Body wood - Urban elm w/ reclaimed walnut top
    Neck wood - Urban elm
    Fretboard wood - Urban Indian rosewood
    Headcap wood - Urban black acacia
    Fret markers - Mother of pearl
    Side dots - Copper
    Frets - Jescar 55090 medium/highest nickel silver
    Nut material - Bone

  • Weight - 8 pounds
    Number of frets - 24
    Fretboard radius - 12”
    Neck profile - Soft V
    Scale length - 24.75”
    Neck joint - Set neck
    Finish - Hand-rubbed Walrus Oil
    Headstock logo - Silkscreened

  • Pickups - TV Jones Ray Butts Ful-fidelity set
    Volume pot - CTS 500k audio taper w/ treble bleed
    Tone pot - CTS 500k audio taper w/ 22nf Orange Drop
    Switch - Switchcraft 3-way switch
    Output jack - Puretone multi-contact jack

  • Finish - Gold
    Tuners - Grover Sta-tite 18:1
    Bridge - Tone Pros T3BP tune-o-matic
    Tailpiece - Bigsby B5
    Knobs - Black top hats w/ gold tops

Double Barrel

Serial no. 0501724

  • Body wood - Urban red gum eucalyptus w/ urban California sycamore top
    Neck wood - Urban red gum eucalyptus
    Fretboard wood - Urban Indian rosewood
    Headcap wood - Urban black acacia
    Fret markers - Mother of pearl
    Side dots - Copper
    Frets - Jescar 55090 medium/highest nickel silver
    Nut material - Bone

  • Weight - 9.4 pounds
    Number of frets - 24
    Fretboard radius - 12”
    Neck profile - ‘50s Soft V
    Scale length - 24.75”
    Neck joint - Set neck
    Finish - Hand-rubbed Walrus Oil
    Headstock logo - Silkscreened

  • Pickups - TV Jones Power’Tron set
    Volume pot - CTS 500k audio taper w/ treble bleed
    Tone pot - CTS 500k audio taper w/ 22nf Orange Drop
    Switch - Switchcraft 3-way switch
    Output jack - Puretone multi-contact jack

  • Finish - Nickel
    Tuners - Grover Sta-tite 18:1
    Bridge - Tone Pros T3BP tune-o-matic
    Tailpiece - Bigsby B5
    Knobs - Witch hats
